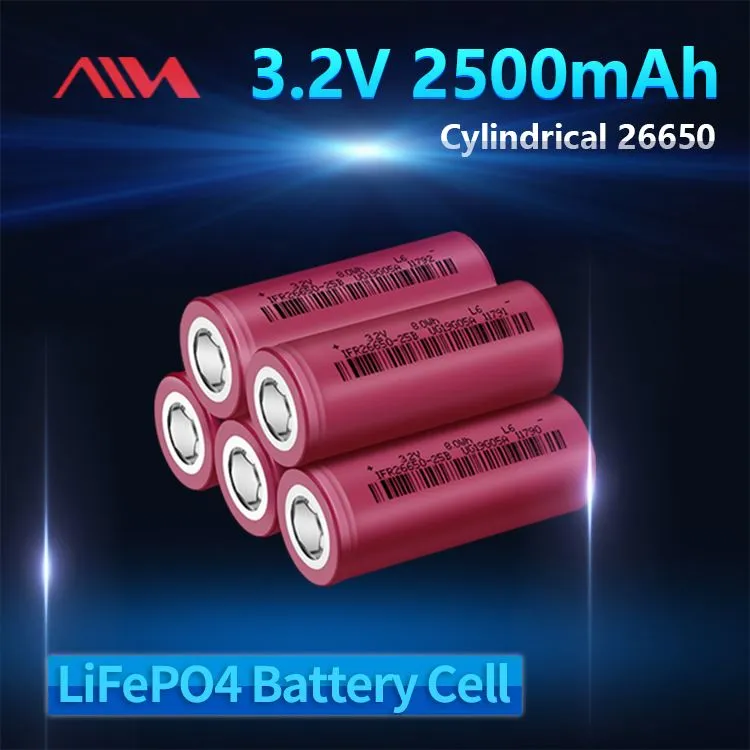

High Rate 3.2v 2500mah Lifepo4 Cell

50C high rate cell，verified by DOE optimization experiment, strict selection and supervison of incoming material, strict manufacturing process controlled, to ensure the battery cell high consistency on static state of initial matching, charge-discharge dynamic process and attenuation performance of the long-term cycling.

Product introduction

High rate 3.2v 2500mah Lifepo4 cell is a power supply device with long service life and high power. We not only carried out the DOE optimization experiment verification of this product, but also strictly supervise the raw materials and strictly control the manufacturing process. This effectively ensures the high consistency of the cells in static initial matching, dynamic process of charge and discharge, and long-term cycle decay performance.

Product prarmeter

Products Model	SNLFP25B	Brand	SUNNEW
Cell Capacity	8Wh	Charge Temperature	0-60℃
Cell Voltage	3.2V	Discharge Temperature	-20~60℃
Cell Capacity	2500mAh	Communication	optional
Cell Technology	Lifepo4	Operation Life	10+ years
Charger Limit Voltage	3.65V	Operation Cycle Life	Over 6000 times
Discharge Cut-off Voltage	2.0V	Weight	85g
Charge Current (Max.)	12.5A	Dimensions	L26*H65mm
Discharge Current (Max.)	75A	Products certificates	CE, ROHS, UN38.3, MSDS

Widely used:

Electric cars, electric bicycles, tricycles, scooters, golf carts, trolleys, wheelchairs, medical instruments, solar energy supply

systems, solar panels, energy storage, power tools, power tools, instruments, LED lighting, remote control toys, inverters

Appliances, household appliances and emerging equipment.

Product qualification

2.2

2.3

2.4

RFQ

Q: What is overcharge?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.

Q: What is over discharge?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance

Q: Can I have a sample order?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

Q: Do you have MOQ limit?

A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
