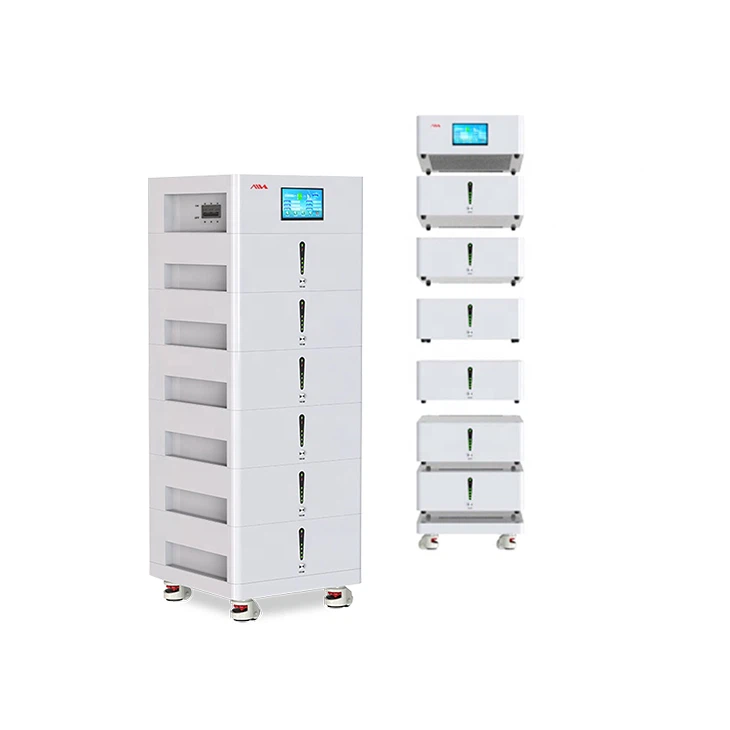

51.2V 600Ah Brick Stacked Lithium Iron Phosphate Energy Storage Battery
51.2V 600Ah Brick Stacked Lithium Iron Phosphate Energy Storage Battery
51.2V 600Ah Brick Stacked Lithium Iron Phosphate Energy Storage Battery
51.2V 600Ah Brick Stacked Lithium Iron Phosphate Energy Storage Battery
51.2V 600Ah Brick Stacked Lithium Iron Phosphate Energy Storage Battery
51.2V 600Ah Brick Stacked Lithium Iron Phosphate Energy Storage Battery

51.2V 600Ah Brick Stacked Lithium Iron Phosphate Energy Storage Battery

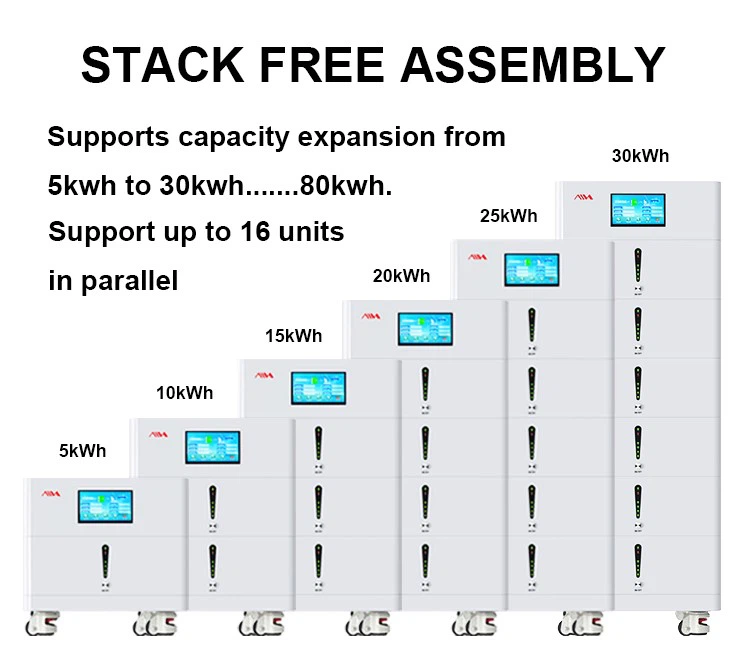

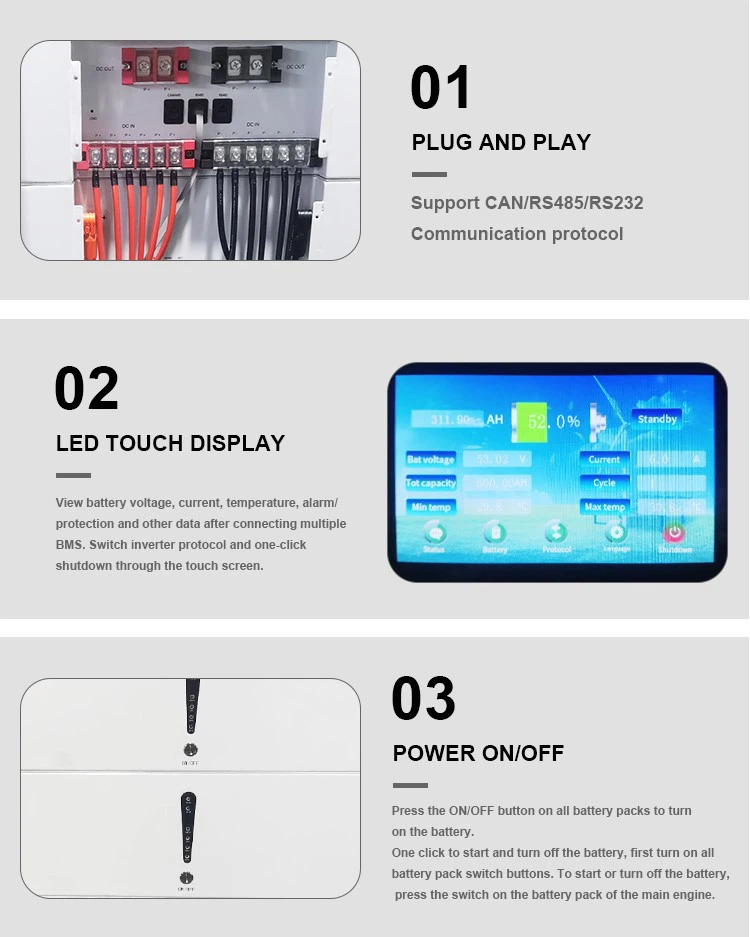

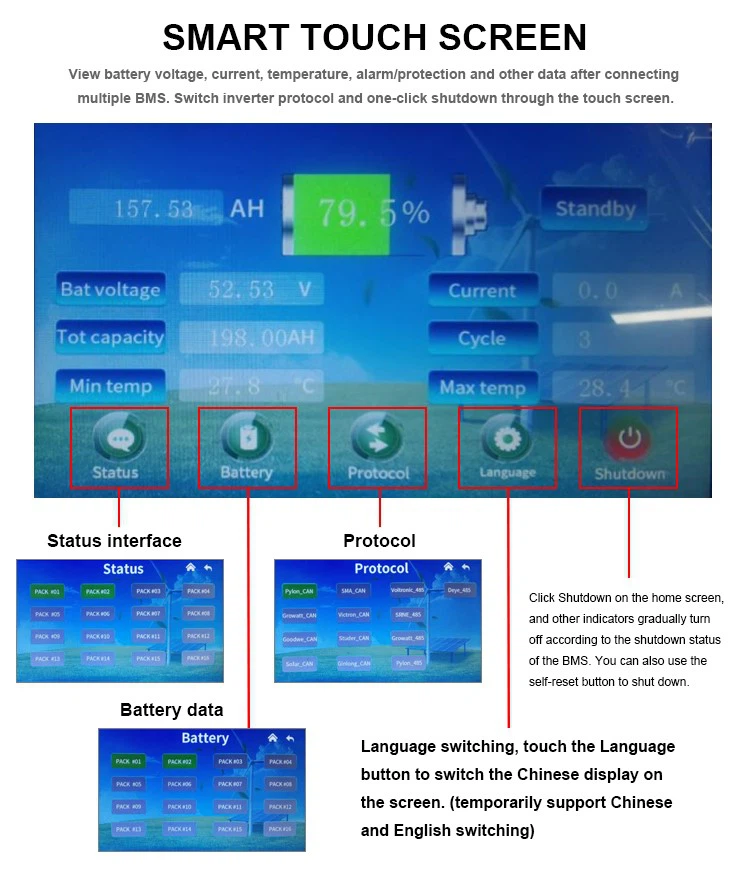

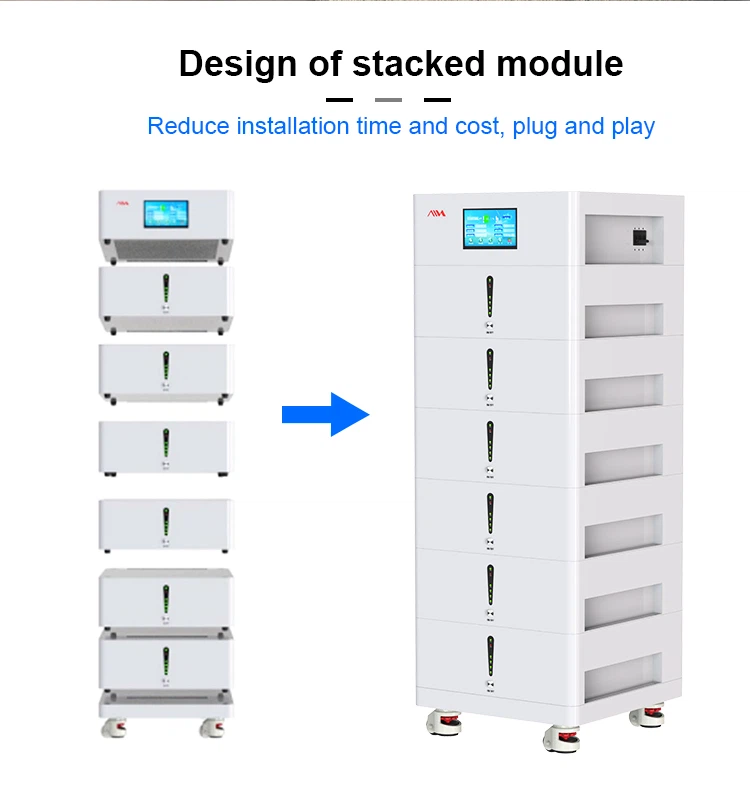

This product adopts stacked design, easy to use, easy to install. Effectively save installation time and cost. LED touch display, compact and stylish design, suitable for your warm home environment.

Product Introduction

Items		Specification
Boundary dimension		L496W510H1358mm
Serial-Parallel Mode		16S1P
Basic parameter	Nominal voltage	51.2V
	Typical capacity	100Ahx6(5120x6Wh)
	Inner resistance	≤60mΩ
	Working voltage range	43.2~58.4 V
Charging input	Charge method	CC&CV
	Charge voltage	58.4V
	Standard charge current	50A
	Max. continuous charge current	100A
Main shell material	SPCC
IP class	IP51
Cooling method	Air cooling
Net weight	Approx 315kg
Environmental requirements	Operation temperature range	Charge: 0°C~45°C
		Discharge: -20°C~60°C
	Storage temperature range	15°C~25°C: ≤ 12 Months
		0°C~35°C: ≤ 3 Months
	Storage humidity	-20°C~45℃: ≤ 1 Months
		15%-85%RH
Cycle Life	C (6000 cycles) ≥ C (initial) * 80% @ 0.5C / 0.5C 25 ± 2C
