[Caution!]
1.Please ask the online customer service or send sales@sunnew-energy.com for real-time DDP quotation.
2. Both paypal and credit card payment is supported after consulatation.

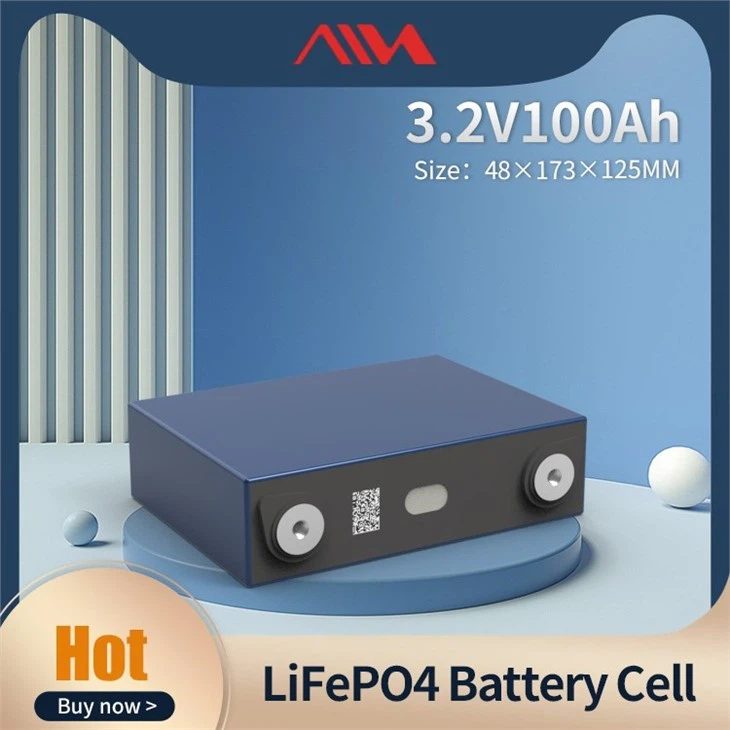

Specification
Battery Brand: Ganfeng
Chemistry: Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal Voltage: 3.2V
Operational Voltage: 2.5 V – 3.65 V
Nominal Capacity: 100Ah
Impedance Resistance: ≤0.45mΩ
Weight: 2.2±0.3kg
Dimensions (mm): 173.9*132.2*48±0.5mm
Cycle Life: ≥3000 cycles (Retention: ≥80%DOD)
Residual Capacity Loss: Per month: ≤0.45mΩ
Charging Temperature: 0℃~55℃
Discharging Temperature: -20℃~55℃
Product Application
electric vehicle, electric bikes, scooters, boats, submarines, golf carts, communications, energy storage, Intelligent network, etc.
Note!
1. One Cell will come with one set busbar, bolt, and washer for free. (e.g. 4 Cells will come with 4 pcs(busbars + bolts + washers) .
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage.
4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
