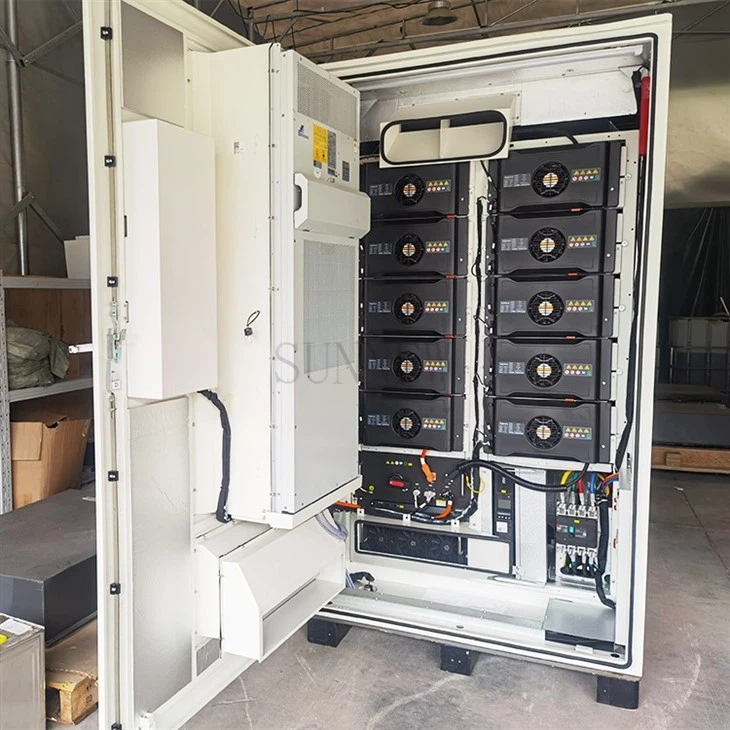

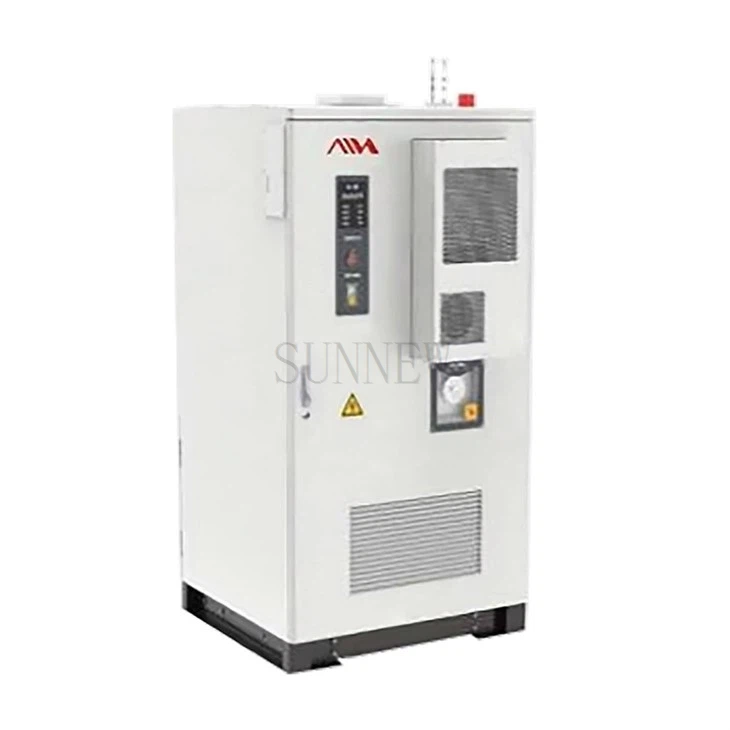

Ener Hexon ™ Smart115 products are mainly composed of power battery cluster, storage inverter, off-grid switching unit STS, variable frequency conversion temperature control system, precision suppression and explosion discharge combined fire protection system, electrical auxiliary equipment and its weather resistant sheet metal cabinet, etc., and the intelligent digital 50 kw / 115 kWh system managed by BMS and EMS.
01
Safe
Multi-dimensional electrical fusion perception, multi-level fuse protection. Internal integration of energy storage /PCS,off-grid control unit STS and other equipment, more unified bus control, and improved system stability.
02
Simple
All in one design, modular installation, a single cabinet covers an area of only 1.265㎡. Hand-in-hand parallel expansion is simple, covering a wide power range of 50kW-400kW.
03
Efficient
Support black start function, reliable power supply in off-grid / micro-grid mode.Selection of multiple operation modes ( support virtual power plant, grid connection, and off- grid) to improve revenue.
04
Intelligence
Cloud platform management system, supporting remote / local monitoring. Intelligent balancing strategy, system AI early warning, to ensure the consistency of the whole battery life cycle.
|
Product model
|
SN -DS5T0115-P0050A
|
|
Energy storage parameters
|
|
|
Rated energy
|
115.2KWh
|
|
Rated capacity
|
150Ah
|
|
Rated voltage
|
768Vdc
|
|
Battery voltage range
|
672~864Vdc
|
|
Rated charge / discharge current
|
65A |
|
Maximum charge / discharge current
|
88A |
|
PCS parameter
|
|
|
Power rating
|
50KW
|
|
The DC-side operating voltage range
|
580~1000Vdc
|
|
Maximum current at the DC side
|
88A |
|
AC-side rated voltage
|
400Vac @ 3L/N/PE
|
|
The AC-side working voltage range
|
300~440Vac
|
|
Rated power grid frequency
|
50Hz/60Hz
|
|
Current total harmonic distortion
|
At <3%@ rated power
|
|
Voltage-total harmonic distortion
|
<3%@ Rated power & Linear load
|
|
Maximal efficiency
|
98.6%
|
|
Other parameters
|
|
|
Weight
|
Net weight 1300 kg, with packing gross weight 1330kg
|
|
Working ring,boundary temperature
|
-20~55 ℃
|
|
Storage environment temperature
|
-20~45 ℃
|
|
Overall dimensions (W * D * H)
|
This machine 1150*1100*2050mm, with packaging 1210*1160*2110mm
|
|
Communication mode
|
RS485, Ethernet, 4G
|
