Product function features
Ener Hexon ™ Smart150 product is mainly composed of a power battery cluster,hybrid optical storage inverter, fan controller, variable frequency conversion temperature control system, unified, accurate suppression and explosion discharge combined fire protection system, electrical auxiliary equipment and weather resistant container cabinet, etc. And the intelligent digital 50kw / 150kWh system is managed by BMS and EMS.

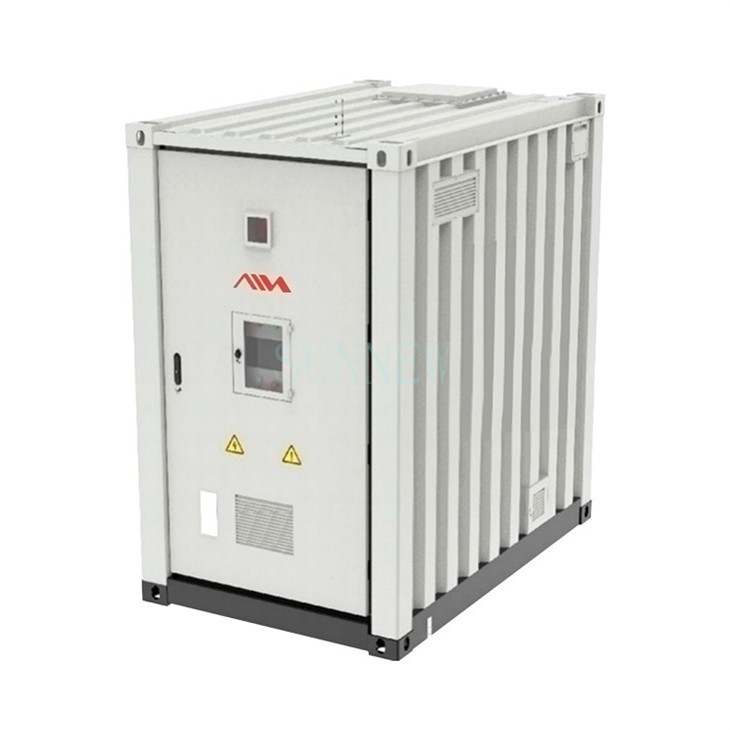

Product name : Ener Hexon ™ Smart150 Wind\PV\Diesel Hybird Energy Storage System
System, model: SN-DS5T0150- PVW50A.
learn more
Product specification andparameters
The specifications of the intelligent distributed energy storage system are as follows
|
Product model
|
SN-DS5T0150-PVW50A | ||
|
Wind power parameters
|
Photovoltaic parameters
|
||
|
power rating
|
10KW
|
Maximum transmission,incoming power
|
50KW
|
|
Rated input voltage
|
380VAC
|
starting voltage
|
200V
|
|
input voltage range
|
0~600VAC
|
Maximum PV voltage
|
1000Vdc
|
|
Power-absorption mode
|
MPPT |
Photovoltaic amount, fixed voltage
|
630Vdc
|
|
MPPT voltage range
|
260~800VAC
|
MPPT operating voltage range
|
200-850Vdc
|
|
output rating
|
10KW
|
MPPT quantity
|
4 |
|
Rated output voltage
|
620VDC
|
Single MPPT, input number
|
2 |
|
range of nominal tension
|
200-900VDC
|
Maximum input current (per MPPT)
|
30A |
|
Communication parameters
|
Maximum short-circuit current (per MPPT)
|
40A | |
|
output rating
|
50KW
|
Energy storage parameters
|
|
|
Maximum input on power
|
50KVA
|
rated energy
|
150KWh
|
|
Grid-connected maximum
output depends on the
power
|
50KVA
|
rated capacity
|
280Ah
|
|
Off-grid maximum output
depends on the visual power
|
50KVA
|
rated voltage
|
537.6Vdc
|
|
maximum output current
|
75A |
Battery voltage range
|
470.4~604.8 Vdc
|
|
Rated voltage (input and
output)
|
3L/N/PE; 400V
|
Rated charge / discharge current
|
90A
|
|
Power grid frequency
|
50Hz /60Hz
|
Maximum charge / discharge current
|
140A
|
|
Voltage-total harmonic
distortion
|
<3%@ Rated power & Linear load
|
Mechanical parameters
|
|
|
Inverse efficiency parameters
|
weight
|
3300kg
|
|
|
Maximal efficiency
|
98.4%
|
outline dimension
|
This machine is 2437*1600*2591mm
|
|
European efficiency
|
97.5%
|
communication
|
RS 485, Ethernet, 4G
|
