Product Description

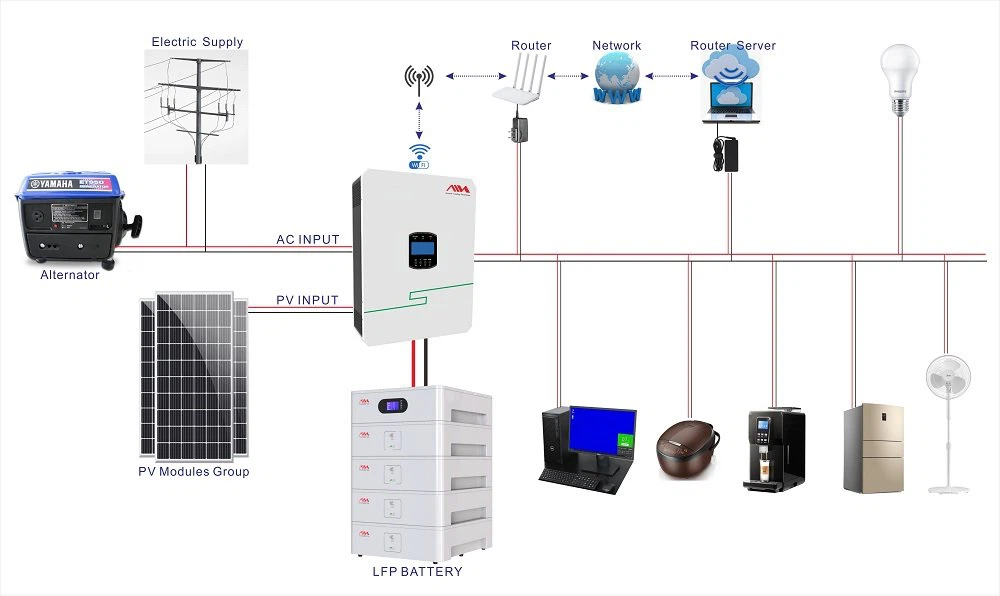

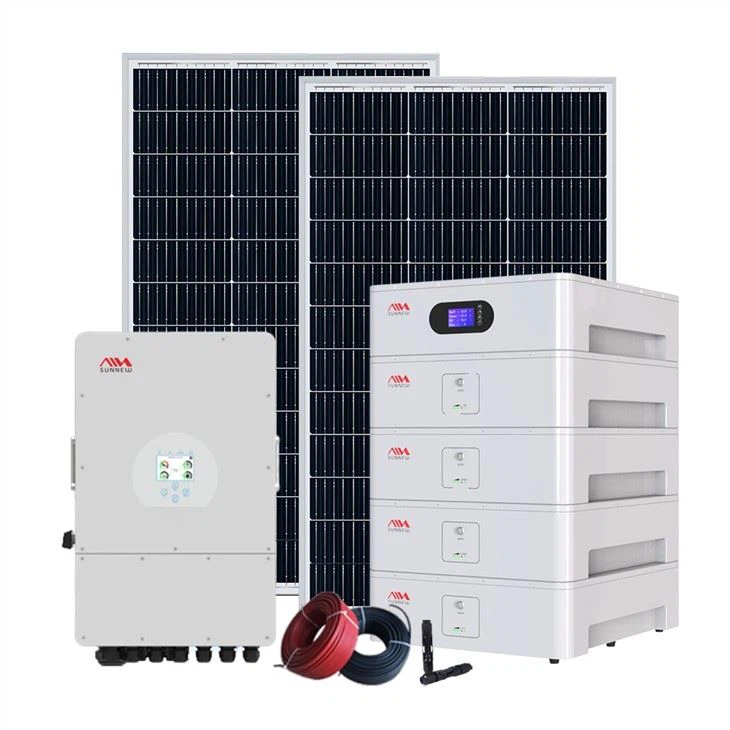

10KW hybrid solar system with Lifepo4 batteries combines the best performance of grid-connected and off-grid solar systems. These systems can be described as either off-grid solar with utility backup power or grid-tied solar with additional battery storage. This solar system includes lifepo4 battery pack, inverter, solar panel and controller. Among them, lithium iron phosphate battery packs are used to store solar energy and provide backup power for each household. The 10KW hybrid solar system with Lifepo4 batteries has a sturdy and corrosion-resistant frame, suitable for outdoor use and can withstand strong winds, rain and snow.
Configuration Detail
| No. | Item | Description | Quantity |
| 1 | Solar Panel | Mono 450W solar panel | 22 pcs |
| 2 | Combiner Box | 3 inputs , 1 output | 1 pc |
| 3 | LiFePO4 Battery | LFP 48V100Ah | 4 pcs |
| 4 | Hybrid Inverter | 10Kva | 1 pc |
| 5 | Mounting Support | Roof/Ground | 1 set |
| 6 | Cable | 4mm2 PV cable | 200 m |
| 7 | Connector | Solar connector | 10 pairs |
| 8 | Tools Bag | Solar installation tools | 1 set |
More Details Please See Below

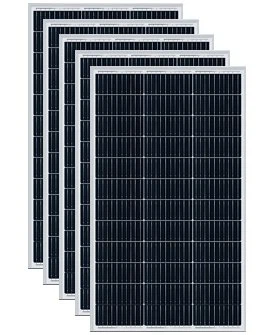

| Solar Panels ≥longest warranty:25 years ≥Highest conversion efficiency |
Hybrid Inverter
Output of a pure sine wave
|
|

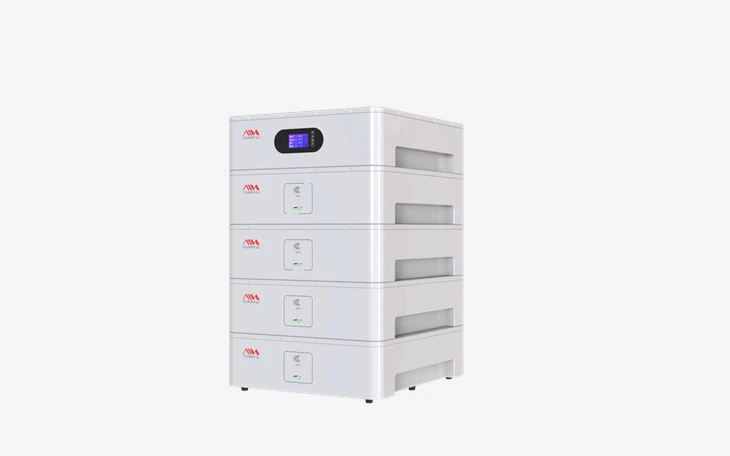

| Lithium Iron Phosphate Battery Brick type LiFePO4 48V 100Ah Battery Pack. Cycle life over 3000 cycles. |

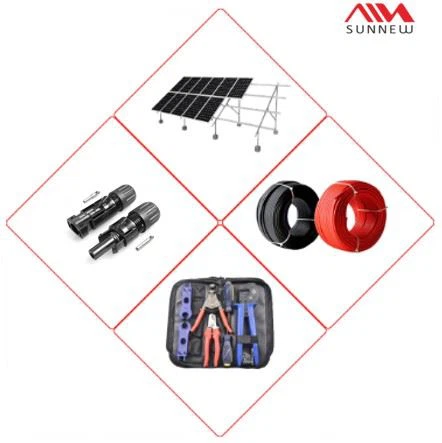

 | MOUNTING STRUCTURE 1.Ground Solar Mounting system 2.Residential Roof(Pitched Roof) 3.Car parking solar mounting system 4.Vertical wall solar mounting system 5.Commercial Roof(Flat roof&workshop roof) 6.All aluminum structure solar mounting system ACCESSORIES 1.AC Cable 2.DC Switches 3.AC Breaker 4.AC/DC Combine box 5.PV Cable 4mm2 6mm2 |
