What is the Depth of Discharge of a Solar Battery?
As a solar battery supplier, I often get asked about the concept of the depth of discharge (DoD) of a solar battery. Understanding the depth of discharge is crucial for anyone looking to invest in a solar energy storage system, as it directly impacts the battery's performance, lifespan, and overall cost - effectiveness.
Defining Depth of Discharge
The depth of discharge refers to the percentage of a battery's capacity that has been used relative to its total capacity. For instance, if a solar battery has a total capacity of 100 amp - hours (Ah) and 50 Ah have been discharged, the depth of discharge is 50%. It is essentially a measure of how much energy has been taken out of the battery compared to its full - charge capacity.
Importance of Depth of Discharge in Solar Batteries
-
Battery Lifespan
The depth of discharge has a significant impact on the lifespan of a solar battery. Most batteries have a limited number of charge - discharge cycles, and the depth of each discharge affects how many cycles the battery can endure. Generally, the shallower the depth of discharge, the longer the battery will last. For example, a lithium - ion battery might be rated for 2000 charge - discharge cycles at a 50% DoD, but only 1000 cycles at an 80% DoD. This means that if you frequently discharge your battery to a high depth, you'll need to replace it sooner, increasing your long - term costs. -
Battery Performance
The performance of a solar battery can also be affected by the depth of discharge. When a battery is discharged to a very high depth, its voltage can drop significantly. This can lead to reduced efficiency in powering your electrical devices. For example, some sensitive electronics may not function properly if the voltage supplied by the battery is too low. Additionally, deep discharges can cause stress on the battery's internal components, which may lead to a decrease in its overall capacity over time. -
System Design and Sizing
Understanding the depth of discharge is essential when designing a solar energy storage system. You need to determine the appropriate battery size based on your energy consumption and the desired depth of discharge. If you plan to have a high depth of discharge, you'll need a larger battery to ensure that you have enough energy stored for your needs. On the other hand, if you can manage with a shallower depth of discharge, you may be able to get away with a smaller and less expensive battery.
Different Types of Solar Batteries and Their Optimal Depth of Discharge
- Lead - Acid Batteries
Lead - acid batteries are one of the most common types of batteries used in solar energy storage systems. They are relatively inexpensive but have a shorter lifespan compared to other battery types. For lead - acid batteries, it is generally recommended to keep the depth of discharge below 50% to maximize their lifespan. Deep discharges can cause sulfation, a process where lead sulfate crystals form on the battery plates, reducing the battery's capacity and efficiency. - Lithium - Ion Batteries
Lithium - ion batteries, including LiFePO4 (lithium iron phosphate) batteries, are becoming increasingly popular in solar applications due to their high energy density, long lifespan, and low self - discharge rate. These batteries can typically handle a higher depth of discharge compared to lead - acid batteries. Many LiFePO4 batteries can be safely discharged to 80% or even 90% DoD without significant degradation. For example, our Factory Wall Mounted Deep Cycle Battery Solar Battery Lifepo4 200ah 51.2V Lithium Battery is designed to provide reliable performance even at relatively high depths of discharge. - Nickel - Cadmium (NiCd) Batteries
Nickel - cadmium batteries are known for their durability and ability to withstand deep discharges. They can typically be discharged to 100% DoD without significant damage. However, they have a lower energy density compared to lithium - ion batteries and are more expensive. Additionally, cadmium is a toxic heavy metal, which raises environmental concerns.
Managing Depth of Discharge in a Solar Energy System
- Battery Management System (BMS)
A battery management system is an essential component of a solar energy storage system. It monitors the battery's state of charge, voltage, and temperature and ensures that the battery is not discharged beyond its recommended depth. The BMS can also balance the charge among individual battery cells, which helps to extend the battery's lifespan. - Load Management
Proper load management is another way to control the depth of discharge. By understanding your energy consumption patterns, you can prioritize which electrical devices to power during periods of low solar generation. For example, you can turn off non - essential appliances to reduce the amount of energy drawn from the battery, thus keeping the depth of discharge within a safe range.
Our Solar Battery Offerings and Depth of Discharge
As a solar battery supplier, we offer a range of high - quality batteries designed to meet different depth - of - discharge requirements. Our Lithium Ion Battery 51.2V 100ah 5kwh Power Wall For Home Solar System is a great option for homeowners looking for a reliable and long - lasting battery with a relatively high depth - of - discharge tolerance. It is built with advanced lithium - ion technology, which allows for efficient energy storage and discharge.

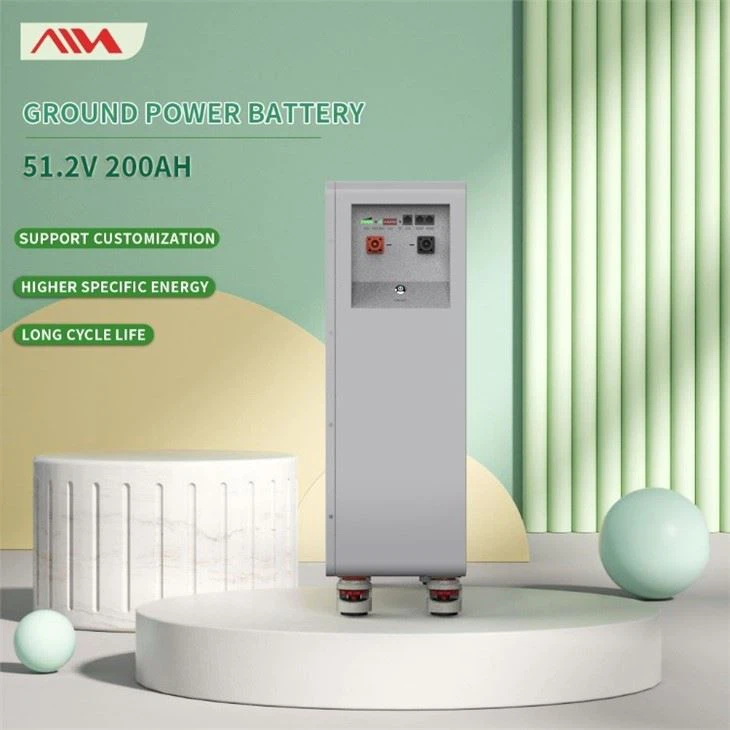

Another product in our portfolio is the 51.2V 200Ah LiFePO4 Floor Type Power System. This floor - type power system is suitable for larger solar energy storage applications. The LiFePO4 chemistry provides excellent performance and a long cycle life, even when discharged to a relatively high depth.
Conclusion
In conclusion, the depth of discharge is a critical factor to consider when choosing and using a solar battery. It affects the battery's lifespan, performance, and overall cost - effectiveness. By understanding the concept of depth of discharge and taking steps to manage it, you can ensure that your solar energy storage system operates efficiently and reliably for many years.
If you are interested in learning more about our solar batteries or have specific requirements regarding depth of discharge, we invite you to contact us for a detailed discussion. Our team of experts is ready to assist you in selecting the right battery for your solar energy storage needs.
References
- "Battery Energy Storage Systems: Design and Analysis" by Dr. M. Hashem Nehrir and Dr. S. Subramaniam
- "Solar Power Systems: Design, Installation, and Maintenance" by Paul Gipe
